Customized PLC Glass Straight Line Edging Machine and Customization for Your Requests

Grinding Head Number : 9

Condition : New

After-sales Service : One Year

Glass Thickness : 3-20mm

Min Glass Size : 80*80*3mm

Working Speed : 0.6-0.8 M/Min

Transport Package : Wooden Packing

Specification : 6600*1000*2600mm

Trademark : Fssida

Origin : Foshan

HS Code : 8464201000

Supply Ability : 2 Sets/Mouth

Warranty : One Year

Type : Glass Edging Machine

Certification : ISO 9001

Structure : Vertical

Control System : PLC

Glass Edging Machine Type : Glass Straight Edging Machine

Customization : Available | Customized Request

Place of Origin : China

MOQ : 1 set

Delivery Time : Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram

Contact Now

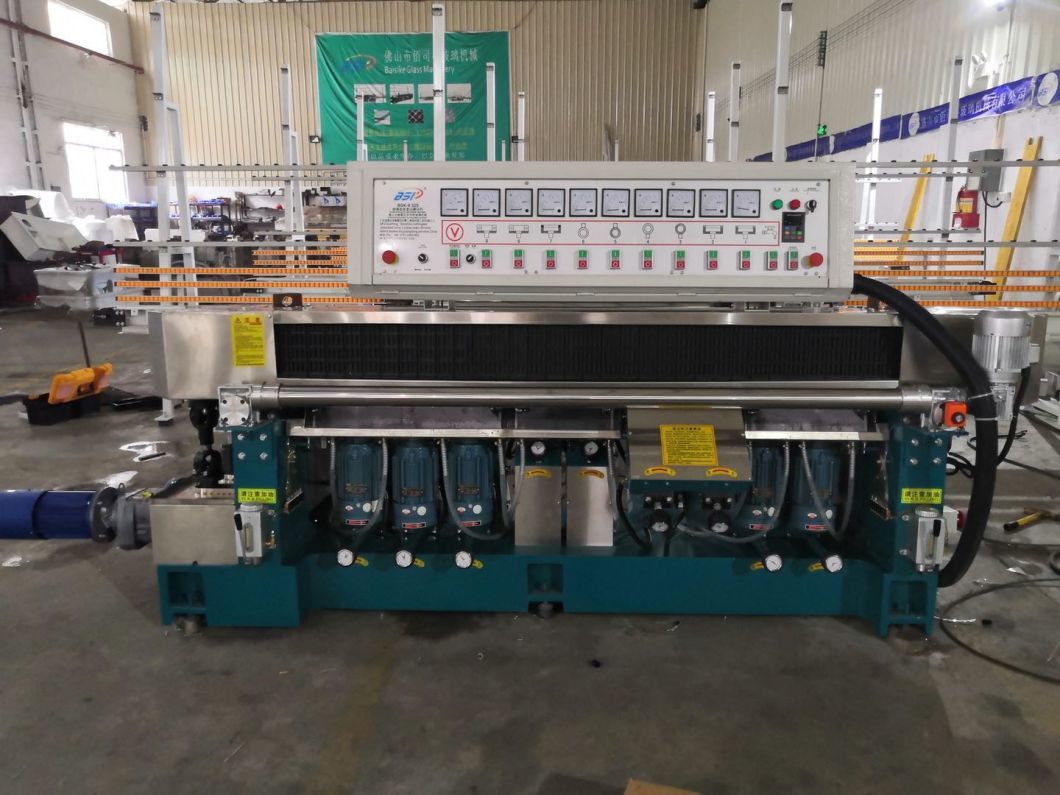

ST9325E / Glass straight line edging machine

Machine Introduction

The machine is glass 9 motors straight line edging machine,, used for grinding and polishing the bottom edge and edge of flat glass. A special telescopic platen is used to grind glass of different thicknesses. The machine is easy to operate and stable. The front rails can be moved in parallel to adjust the thickness of the glass for easy and precise operation. The chamfering grinding wheel adopts pallet, and there is no vibration during grinding. The main transmission is frequency conversion speed regulation.
The special part is the input conveyor rack to be vertically adjustable up and down ,the function is to adjust the grinding amount by rotate the rotation handle ,and the grind amount digital display.

Technical parameters

Wheels	9
working speed	0.6-6.0m/min
Max. arris width	2.5mm
Min. glass size	60mm
Glass thickness	3-20mm
Total power	18.75kw
Total dimension	6.6x1.0x2.6m
Total weight	2800kg

Grinding wheel introduction

1#:Diamond wheel 150128*8 100#	2#:Diamond wheel 150128*8 240#	3#:Resin wheel 1301215*10 240#
4#:Polishing wheel 1306035	5#:Resin wheel 1301215*12 240#	6#:Polishing wheel 1306035
7#:Resin wheel 1501215*10 240#	8#:Polishing wheel 1507040	9#:Polishing wheel 1507035

Product advantage:

1)Adopt frequency variator as main transmit system,high or low speed all smooth and no vibration, low noise.

2) Digital display glass thickness.

3) Adopt manual filling function lubrication system , easy to maintain the skateboards which for support grinding motors.
4) The last motor for polishing flat bottom glass, adopt double speed system motor.
5) 4 layer waterproof brush, easy to replace.
6) Advanced front beam configuration.Exclusive design of straight pallets for easier replacement and maintenance.
7) Front and rear rails: high quality cast iron, not easily deformed.
8) Main machine body, supporting pillar, all adopting high quality iron casting.
9) Dovetail grinding head plate: high quality cast iron, professional processing, no gap, stable and vibration-free during work.
10) Waterproof brush: high elasticity, high temperature resistant.
11) The pads and chain are adopted famous brand in China. The front and rear splints are all branded "lobster", and the chain adopts the "Donghua" brand in Hangzhou.

Company Profile
Foshan star Glass Machinery Co.,Ltd is a comprehensive glass machinery company specialized in design, manufacture, selling, after sales service and maintenance. Our products include glass straight-line edger machine, glass straight-line beveling machine,glass drilling machine glass tempering machine etc. These machines have been widely used in various fields such as construction, furniture, art craft, KTV and wall decoration, etc. Having worked in this field for more than 20 years, our engineers are qualified with rich experience and technical skills. Fssida persists in the principle of "surviving on quality and developing on innovation".
Customized PLC Glass Straight Line Edging Machine and Customization for Your Requests

Customized PLC Glass Straight Line Edging Machine and Customization for Your Requests

FAQ
Are you manufacture?
Yes,we are the professional manufacture.

How about the service ?
1. reply it at once if from trademanager,if by email,it reply it within 12 hour
2. deliver max. days within 15 days
3. 24 hours for after -sale serive
4. more than 12 years experience in this kind machine field

What's the guarantee ?

1. 24 hour's technical support by email or calling.
2. English manual and video tutorial.
3. Machine with 1 year quality guaranty (excluding the consumables).
4. 24 hours on line service each day, free technical support.

Do you provide equipment operation training?

Yes. We can provide remotely Guided Installation.

If our price is higher than another company or factories ?

please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.

How long is the delivery time ?

For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.

What is the payment ?

Any payment method you want,such as L/C, T/T, D/P, West-union and so on.
