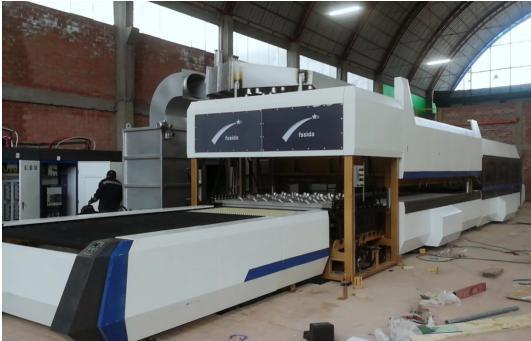

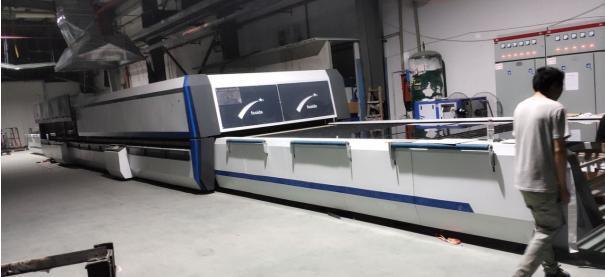

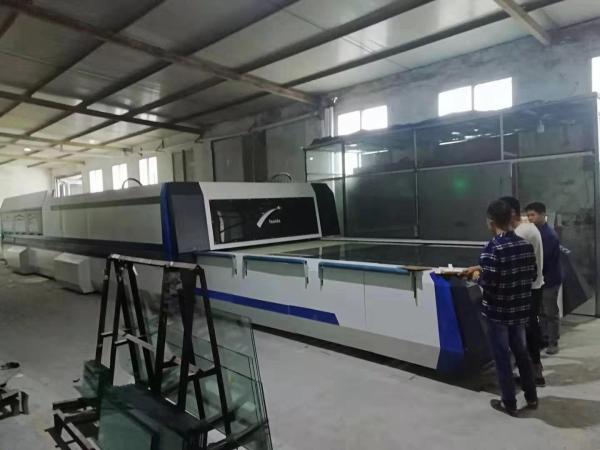

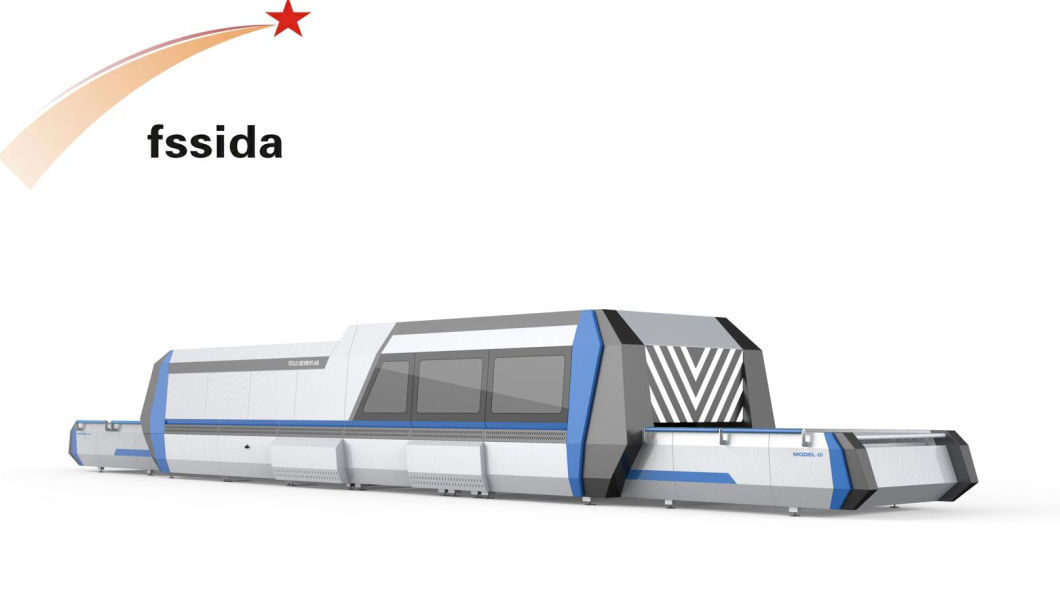

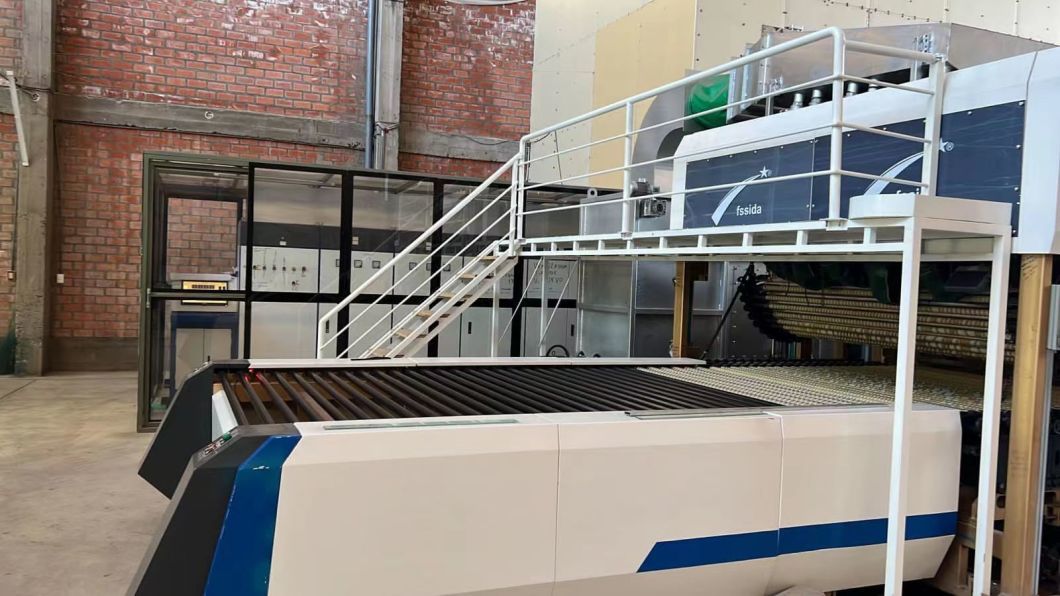

Radiation Model Flat and Bend Glass Tempering Furnace Machine STG-AB1830-4T The furnace includes loading table,top forced air convection heating section , cross bending section, quenching and cooling section, unloading table, and control system. It is used to manufacture flat and bending tempered glass for furniture, home appliance, architecture glass, car side windows etc.
Supply Scope --Loading table
--Heating section(furnace) with top fan convection system
--Fast pass area
--Quenching and Cooling section
--Bend forming section
--Unloading table
--Blower system
Parameter | Model | STG-AB-1830-4T |
| Flat Glass | Max loading area | 1830 x 2440mm |
| Min Glass size | 250x300mm |
| Glass thickness range | 4-19MM |
| Max glass size | 1830x2440MM |
| Bend Glass | Max glass size | 1500x2000(Arc length) MM |
| Glass thickness | 4-19MM |
| For size | Two position(two glass heat ) |
| Radius &thickness | R≥1000mm(4~6mm)
R≥1500mm(8~10mm)
R≥2000mm(12~19mm |
Bend adjustment system
| Bend adjustment by special type of Hydraulic system,for high accuracy bending. |
| Parameter for Hydraulic | 11KW, 21Mpa |
| Power supplier mode | To order |
Packaging and Delivery
Company profile Founded in 2010, Foshan Star Glass Machinery Co., Ltd. is a high-tech enterprise specializing in the
production, research and development and sales of glass deep processing machinery. The company is
located in Foshan City, a major glass machinery center.
The company is committed to the production of glass radiant tempering furnace, convection tempering
furnace, flat bending dual-purpose tempering furnace, automotive glass bending furnace, non
autoclave PVB laminating production line.
After years of hard work and exploration, the company has obtained a number of national patents, and
its technology is ahead of the domestic level. The products sell well all over China and are exported to
Australia, the United States, the Middle East, India, Vietnam, South America and other places. company's level and product quality, and strive to create a skilled, high-quality team. We will sincerely
cooperate with new and old customers at home and abroad with sincerity and jointly develop the
bright road of glass machinery manufacturing industry
